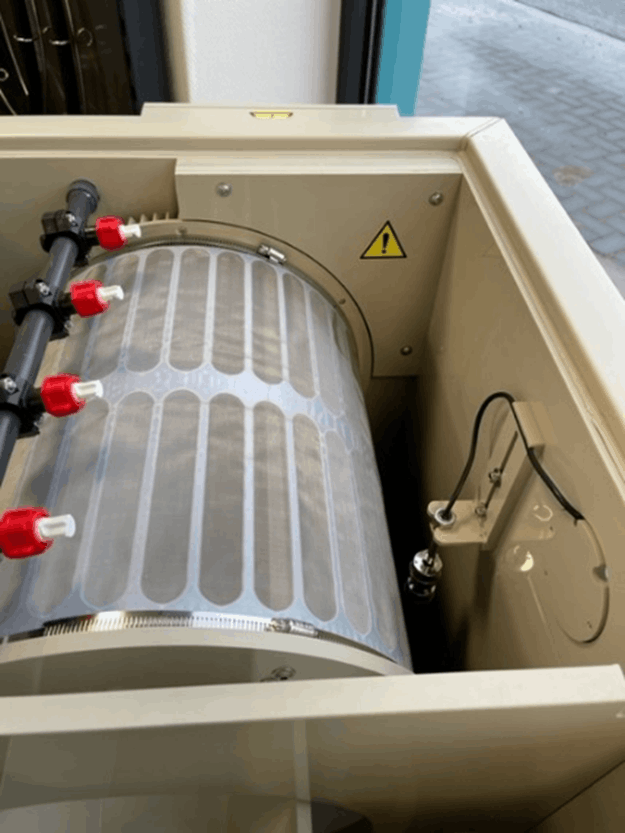

First remove the 3 screws on the cover plateShould look like this after you remove itNow you need to line up the large gear with the small gear, making sure the join is located in the middle, now remove the 2 screw on the LARGE GEAR ONLYWith the 2 screws remove, it should look like thisNow turn the drum screen until you see the 2 small holes on the back small gear box , where the metal peice. Use a allen wrench to loose these 2 screwsOnce you loosen the screw on the back of the small gear, you can remove the 2 large screw on the front of the small gear and pull it out, you can peel the large gear out a little Now you can remove the 4 screw to remove the motor, there is a black rubber gasket located between the motor and the small gearRemove the screws here to access to the back of the motor.
