Click Here for PDF Drawing
Gravity / Pump Fed Mode

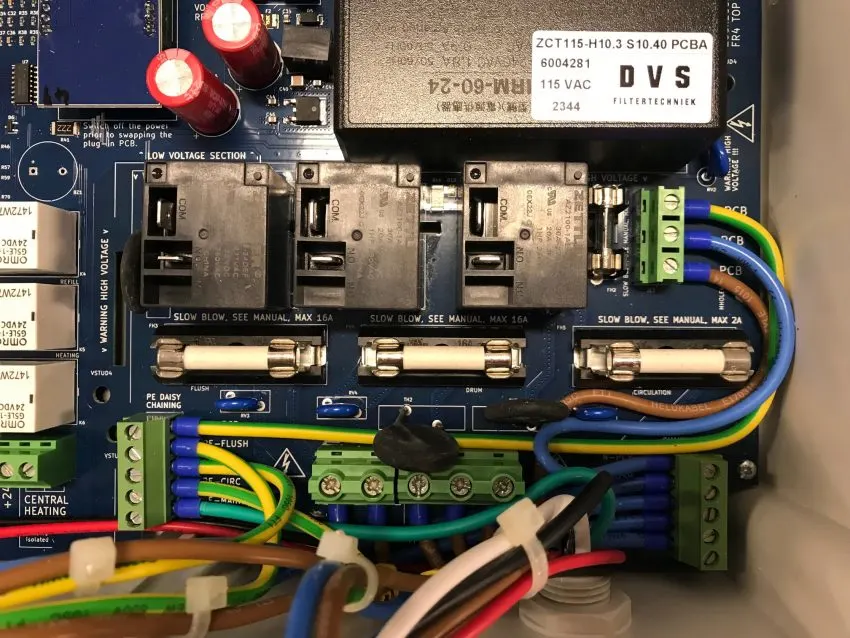

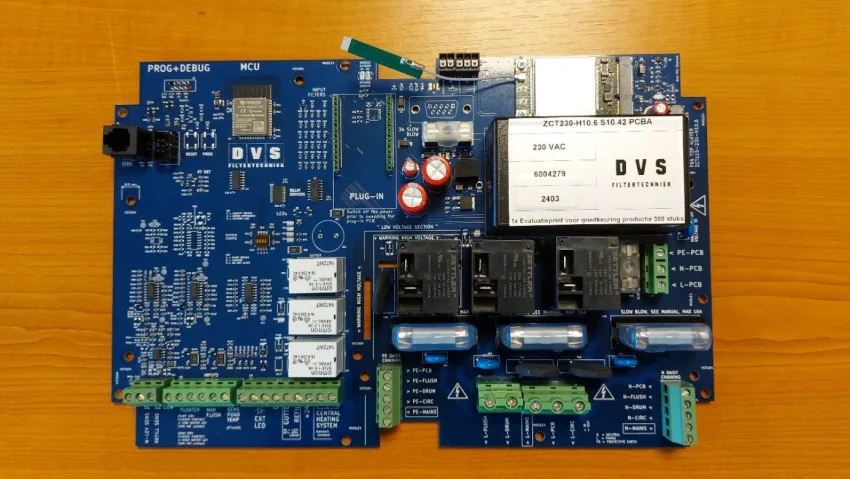

Picture below is the regular gravity mode To change to pump fed mode, you need to change the jumpers in area labeled (location 1) making sure you have the jumpers in the same horizontal order from left to right. Then move the purple and black wire like the area labeled (location 2) THE BELOW PICGTURE…
Adjust the replay
For Gravity System: Use a small flat screw driver, turn E-2 clockwise to the end For Pump Fed: Use a small flat screw driver, turn E-4 clockwise to the end
ECO 22 Installation Pump Fed
More videos can be view here https://www.youtube.com/seasideaquatics
Sea Side Aquatics, ECO-20 RDF Filter
Technical details ECO-20 Maximum Flow 25 m3/h Gravity / Airlift / Pump feed Pump Version has 30% less capacity Water running height 16 cm Material: Housing PP 10/15 mm / Drum PP 20 RVS 316/304 / Silicone sealant Precise CNC machine cut PP-construction Specifications: Standard inputs and outputs acc. drawing…
Sea Side Aquatics X-Large Bakki Shower
Trickel filter TF60 ( Comes with Waterfall or 4″ Outlets ) The trickel filter has a size of 60 x 16 x 43″ tallDelivered as standard with a 50 mm spray pipe for a flowup to a maximum of 50 m3 / h.The water comes in at the top of the trickle filter where itis distributed over…
RDF Installation PP35 Gravity
PP-35 Installation By Mark from Koi USA, please contact mark of you are in the area of New Jersey mark@usakoi.com
Sea Side Aquatics Small Bakki Shower
The trickel filter has a size of 84 x 71 x 38 cm Delivered as standard with a 50 mm spray pipe for a flow up to a maximum of 30 m3 / h. The water comes in at the top of the trickel filter where it is distributed over a 50 mm spray tube….
Sea Side Aquatics Large Bakki Shower
Trickel filter TF100 S2 ( Comes with Waterfall or 4″ Outlets ) The trickel filter has a size of 84 x 71 x 38 cm Delivered as standard with a 50 mm spray pipe for a flow up to a maximum of 30 m3 / h. The water comes in at the top of the…
Sea Side Aquatics CL-65 Combi Filter
Click Here for PDF Drawing Sea Side Aquatics CL-65 Combi Filter ( USE EXTERNAL CLEANING PUMP ) Combi drum filter CL65 Standard flow is 65 m3 / h Gravity / Airlift / Pump fed Installation height 14 cm Material: Housing PP 10 mm / PP15 mm / Drum PP 15 mm Stainless steel 316/304 /…
Sea Side Aquatics CL-35 Combi Filter
Click Here For PDF DRAWING Sea Side Aquatics CL-35 Combi Filter ( USE EXTERNAL CLEANING PUMP ) Combi drum filter CL35 Standard flow is 22 m3 / h Gravity / Airlift / Pump fed Installation height 14 cm Material: Housing PP 10 mm / PP15 mm / Drum PP 20 mm Stainless steel 316/304 /…
